Garmin Echomap UHD 92sv Without Transducer

General

• PHYSICAL DIMENSIONS: 9.8″ x 5.5″ x 2.0″ (25 x 13.9 x 5.1 cm)
• DISPLAY SIZE: 6.1″ x 3.4″; 7.0″ diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
• DISPLAY RESOLUTION: 400 x 800 pixels
• DISPLAY TYPE: WVGA display
• WEIGHT: 1.7 lbs (0.7 kg)
• WATER RATING: IPX7
• POWER CONSUMPTION: 15W
• ANTENNA: Internal or external over NMEA 2000

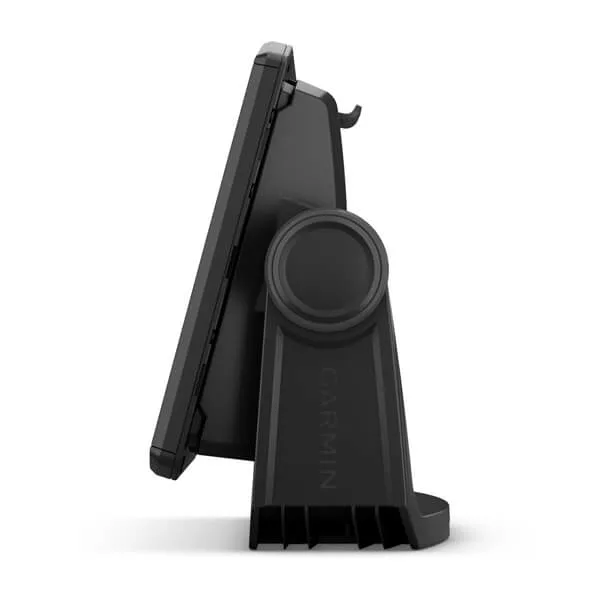

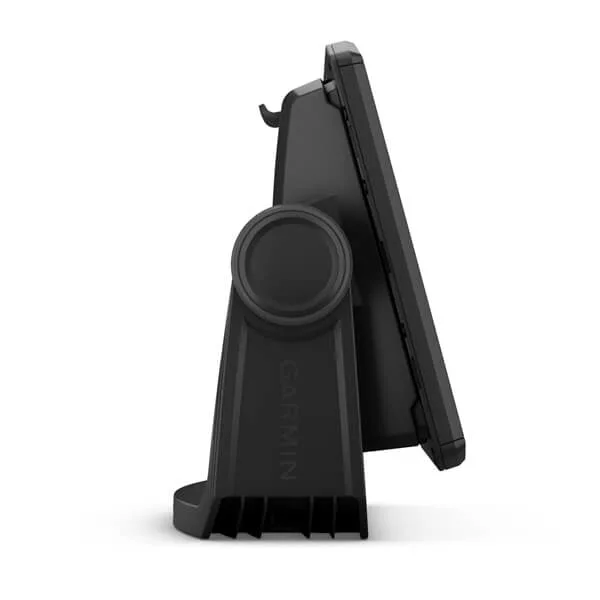

• MOUNTING OPTIONS: Bail or flush
• RECEIVER: 5 Hz
• GARMIN MARINE NETWORK™ PORTS: 1 Panoptix™ port

Maps & Memory

• PRELOADED MAPS: BlueChart® g3 (coastal maps)
• ACCEPTS DATA CARDS: 1 microSD™ card; 32 GB max size
• WAYPOINTS: 5,000
• ROUTES: 100
• TRACK LOG: 50,000 points; 50 saved tracks

Outdoor Recreation Features

• TIDE TABLES: Yes

Chartplotter Features

• GARMIN SONAR COMPATIBLE: Yes
• SUPPORTS AIS (TRACKS TARGET SHIPS POSITION): Yes
• SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO): Yes
• GCV™ BLACK BOX SONAR SUPPORT: Yes
• ACTIVECAPTAIN COMPATIBLE: Yes
• SAILING FEATURES: Yes

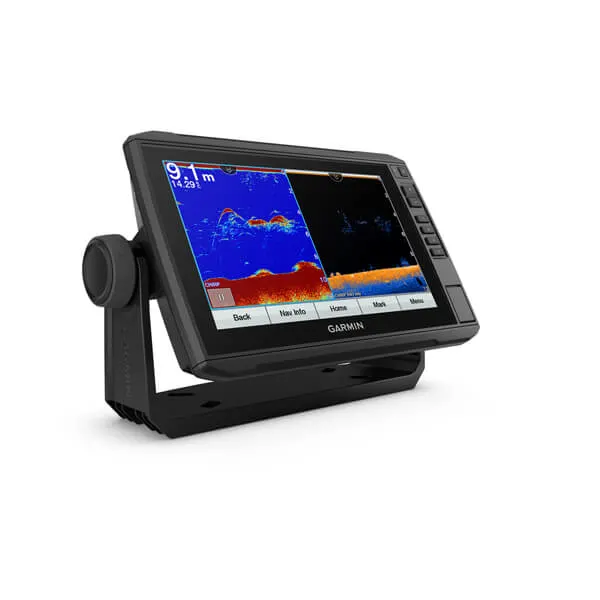

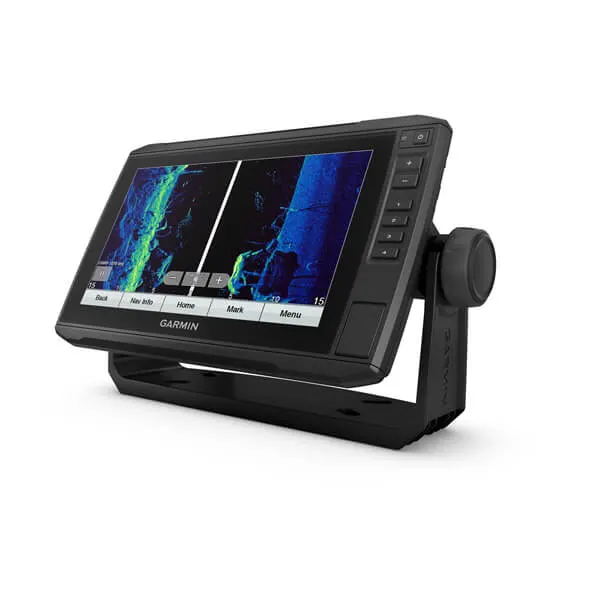

Sonar Features & Specifications

• DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE: Yes
• DUAL-BEAM (77/200 KHZ) SONAR CAPABLE: Yes
• TRANSMIT POWER: 500 W (RMS) / 4,000 W (peak to peak)
• CHIRP SONAR TECHNOLOGY: Yes (Built-in)
• CLEARVÜ: Yes with CHIRP (built-in)
• SIDEVÜ: No
• MAXIMUM DEPTH: 2,300 ft @ 77 kHz, freshwater, 1,100 ft @ 77 kHz, saltwater, (depth capacity is dependent on water bottom type and other water conditions)
• BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP): Yes
• WATER TEMPERATURE LOG AND GRAPH: Yes
• SONAR RECORDING: Yes
• SONAR HISTORY REWIND: Yes

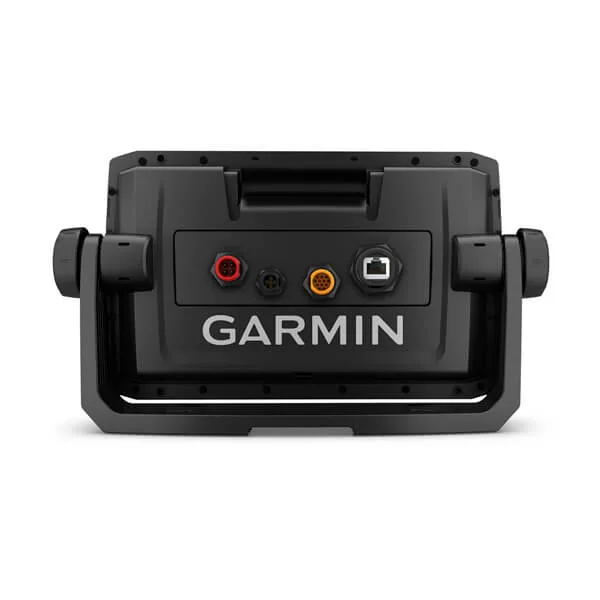

Connections

• NMEA 2000® COMPATIBLE: Yes
• TRANSDUCER PIN NUMBERS: 12
• NMEA 0183 INPUT PORTS: 1
• NMEA 0183 OUTPUT PORTS: 1
• VIDEO INPUT PORTS: None
• VIDEO OUTPUT PORTS: None
• WIRELESS CONNECTIVITY: Yes
