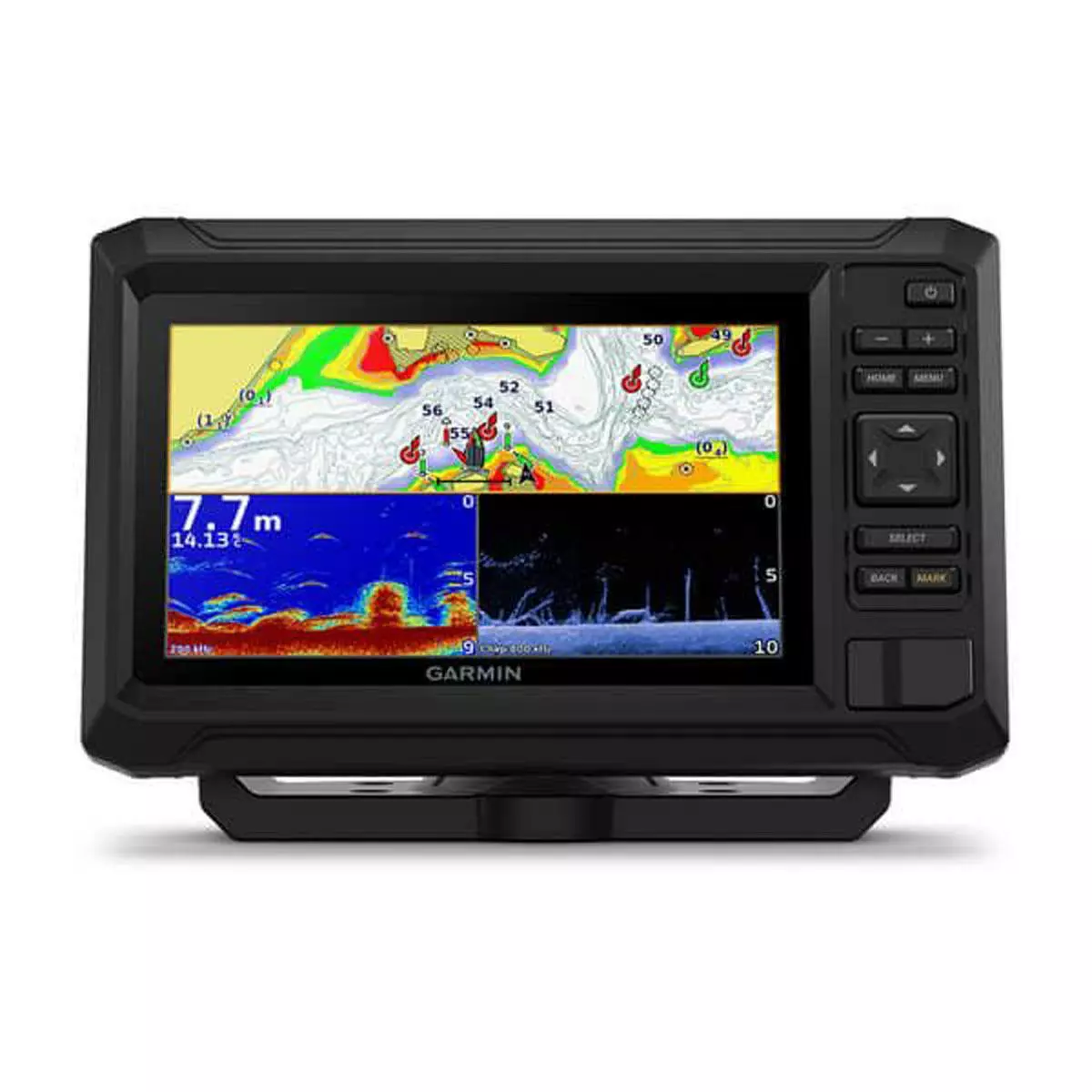

Garmin Echomap UHD2 75cv With GT20 Transducer

The Garmin ECHOMAP UHD2 75cv With GT20 Transducer helps you fish Canadian lakes like a local! Fish will have nowhere to hide with built-in Canada LakeVü g3 inland maps and crisp sonar and mapping. The chartplotter’s bright 7-inch keyed display offers clear Garmin traditional sonar with crisp fish arches and crystal-clear ClearVü scanning sonar in vivid, high contrasting color palettes that separate your target from the underwater structure.

Built-in Wi-Fi connectivity lets you wirelessly share sonar, waypoints, and routes with another compatible ECHOMAP UHD2 chartplotter on your boat – manage it all with Garmin’s free ActiveCaptain app. The app allows access to the OneChart feature, smart notifications, software updates, and Garmin Quickdraw Community data. With such information at your fingertips, you’ll know these waters like a local when using the Garmin ECHOMAP UHD2 75cv w/GT20 Transducer!

• Garmin CHIRP traditional and ClearVü scanning sonars
• High contrast vivid color palettes distinguish targets and structure
• ECHOMAP UHD2 chartplotter supports a variety of Garmin transducers
• Preloaded charts: Canada LakeVü g3 inland maps
• Wi-Fi connectivity with a compatible ECHOMAP UHD2 chartplotter to share sonar, waypoints, and routes.
• Includes:
  • ECHOMAP UHD2 75cv
  • GT20-TM transducer
  • Power/data cable
  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation

• Technical Specifications
  • Dimensions: 9.1 x 5.6 x 2.6 in.
  • Input: keypad
  • Display Size: 6.1 x 3.4 in.
  • Display Resolution: 800 x 480 pixels
  • Display Type: WVGA, TN display
  • Weight: 1.5 lbs.
  • Waterproof Rating: IPX7
  • Mounting Options: bail or flush
• Maps & Memory:
  • Accepts Data Cards: 1 microSD; 32 GB maximum size
  • Waypoints: 5,000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Built-in receiver: 5Hz
  • GPS and supports WAAS: Yes
• Built-in Maps: Canada LakeVü g3 inland maps
• Optional Map Support for BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+, Garmin Navionics Vision+, (Sounder) Topo, Standard Mapping, Garmin Quickdraw Contours

• Chartplotter Features:
  • ActiveCaptain Compatible; Yes
  • Sailing Features: Yes

• Sonar Features & Specifications
  • Power Output: 500 W
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü: built-in 260/455/800/1000/1200 kHz

• Connections:
  • 4-Pin Transducer Ports: 1
  • Garmin Wi-Fi network (local connection)

• Electrical Features:
  • Power Input: 9-18 Vdc
  • Typical Current Draw at 12 Vdc: 1.0 A
  • Maximum Current Draw at 12 Vdc: 1.5 A
  • Maximum Power Usage at 10 Vdc: 18W
